Picking out the right furnace filter and changing it when it becomes dirty is as important to your HVAC system as changing the oil is to your car. Each plays a vital function in keeping its system running safely, efficiently and for a long time.

A clogged furnace filter loses its effectiveness, allowing potentially harmful particles to flow through your home. It also limits airflow, which can damage your furnace and reduce its life span.

Making sure your furnace uses a clean filter that is appropriate for your needs is not just about keeping your furnace working efficiently. It’s also about delivering good indoor air quality for your residence.

Your health is important to the heating pros at Appalachian Heating. We've long focused on improving indoor air quality in Mount Hope. Here, we’ve answered frequent questions about HVAC filters, including that particularly tricky question of what direction do you point a filter in your furnace or air conditioner?

How Often to Replace the Air Filter in a Furnace

It's important to replace dirty air filters in a furnace or air conditioner regularly. Soiled filters cause the system to worker harder than it should because it takes extra effort to force air through the plugged-up filter.

Officials suggest examining your furnace filter monthly and replacing it if it’s dirty. You’ll know if the filter needs to be changed because it will coated with dirt or dust. Homeowners who have pets will very likely want to replace their furnace air filter more often, because a quality air filter will trap pet hair circulating in a home.

Where Is the Air Filter in My Furnace?

In general, a furnace air filter is normally found in the return air duct or blower compartment before the return air reaches the furnace. This is so air being pulled into the system is filtered before it passes through the furnace components and is heated.

Depending on the furnace model, the filter may be found on the right, left, bottom or in some cases, inside the furnace. It's typically housed inside of a slot, frame or cabinet for convenient access and replacement. Always refer to your furnace's owner manual for details concerning filter location of your particular brand and model of furnace.

Is a Furnace Filter the Same as an Air Filter?

The simple answer is, yes. In HVAC, a furnace filter and an air filter or air conditioner filter are essentially identical. While people might refer to them differently based on the current season— hot or cold—they are all filters that clean the air in your residence.

They each eliminate dust, allergens, bacteria and other contaminants from the air that is drawn into the furnace and air conditioning system, making sure the air circulating throughout your home is clean and safe.

What Is a MERV Rating and What MERV Rating Do I Need?

Once you track down your old furnace filter and figure out when it should be substituted for a clean one, it’s time to select a replacement. That means picking the level of filtration that you need. One method to do this is by picking an appropriate MERV rating for your needs.

MERV stands for Minimum Efficiency Reporting Values. The MERV rating calculates the effectiveness of air filters at trapping airborne particles. The rating scale ranges from 1 to 20, with higher numbers indicating a greater ability to filter tinier particles.

Experts say a filter with a MERV rating between 8 and 13 offers an appropriate balance between having good indoor air quality without unnecessarily restricting airflow. However, people with specific health conditions could need to purchase a filters with a higher MERV rating.

Which Way to Put the Air Filter in a Furnace or Air Conditioner

Installing an air filter in a furnace or air conditioner properly is crucial for the efficient operation of the heating or cooling system. Air filters have a particular direction, indicated by an arrow located on the side of the filter frame. The filter should be put in with this arrow pointing in the direction of the furnace or AC, which is the direction of the airflow. If you're not sure about the airflow direction, remember that air always moves from the return duct and then to the heat or cooling source. Therefore, make sure the arrow points at the furnace or AC.

Many people have difficulty remembering which direction to point their system's air filter. To help remember, consider snapping a quick photo with your cell phone after the filter has been accurately installed by a professional. Or, you also could ask a technician to use a marker to write on the outside of your furnace which direction the filter should be installed. A handy time to do this is during a scheduled furnace maintenance appointment.

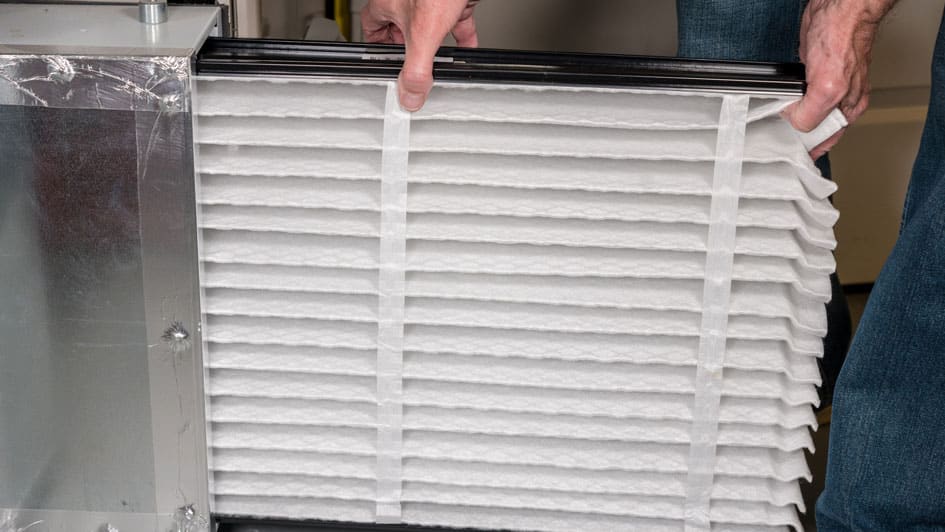

How to Change a Furnace Air Filter

Replacing the filter on your furnace or air conditioning system is a quick and easy process. Here is a step-by-step list of how to take out a dirty air filter and exchange it for a new one:

  1. 1. Turn off your furnace: Make a point to shut off your furnace before starting up the process.
  2. Locate the furnace filter: Typically, the filter is found inside the furnace or in the air return vent. Make a mental note or write down which direction the arrow points on the filter, because you’ll want the arrow on the clean filter to point in the same direction.
  3. Remove the old filter: Be careful not to knock out any dust or dirt.
  4. Record the date: Write down the date you changed filters on the new filter's frame. This will help you keep track of when it's time for another replacement.
  5. Slide in new filter: Put in the new filter with the arrow pointing toward the furnace, which is the direction of airflow and should be the same direction the arrow pointed on the old filter you are replacing.
  6. Secure the filter: Make sure the new filter fits nicely and close any latches or clips that secure it in the compartment.
  7. Turn on your furnace: Once the replacement filter is safely installed, you can turn your furnace back on.

Will a Dirty Air Filter Cause a Furnace Not to Work?

The short answer is, yes, a dirty air filter can cause a furnace to quit working or reduce its lifespan. Changing your furnace or air conditioner filter is one of the easiest things you can do to keep your system operating correctly.
